Long Readout Time (LRT) Option¶

Note

This tutorial is applicable to all SHFQC+ Instruments.

Goals and Requirements¶

LabOne Q is the recommended control software to operate the SHFQC+ for Quantum Technology applications.

The goal of this tutorial is to demonstrate how to use SHFQC+ and the Long Readout Time (LRT) option to perform long qubit readout using the LabOne User Interface (UI) and Zurich Instruments Toolkit API.

For qubit control with the SHFSG+ Signal Generator, the SHFQC+ Qubit Controller and the HDAWG Arbitrary Wave Generator, and instrument synchronization and feedback with the PQSC Programmable Quantum System Controller, see tutorials section under a specific instrument found in the Online Documentation.

Preparation¶

Please follow the preparation steps in Connecting to the Instrument and connect the instrument in a loopback configuration as shown in Figure 1 or to a signal under test.

Figure 1: SHFQC+ connection.

Tutorial¶

In this tutorial, the instrument runs a measurement that performs long readout of 2 qubits in parallel. The measurement is repeated 100 \(\times\) 100 times and 100 averaged complex-valued results are returned.

LabOne UIzhinst-toolkit

This section shows how to use LabOne UI to configure the instrument, run the measurement and monitor the measurement results.

Configure the instrument

Set center frequency and power range of input and output signals

Configure these parameters on the Input and Output Tab as in Figure 2 and in Table 1.

Table 1: Settings of QA Channel 1 on In/Out Tab
Parameter	Setting	Description
QA Channel Selection	All	Select All to display all Channels.
Cent Freq (Hz)	5 GHz	Set center frequency of the frequency sweep.
Signal Input 1 On	Enable	Enable the Signal Input 1.
Signal Input 1 Range (dBm)	0 dBm	Set power range of Signal Input 1 to 0 dBm. This setting allows the instrument to acquire an input signal with a power up to 0 dBm.
Signal Input 1 Input Path	RF	Set input path of Signal Input 1 to RF path.
Signal Output 1 On	Enable	Enable the Signal Output 1.
Signal Output 1 Range	0 dBm	Set power range of Signal Output 1 to 0 dBm. This setting allows the instrument to output a signal with a power up to 0 dBm.
Signal Output 1 Output Path	RF	Set output path of the Signal Output 1 to RF path.

Upload and compile measurement sequence

The measurement sequence is defined on the Sequence Sub-Tab of the Readout Pulse Generator Tab, see Figure 3 and Figure 3.

Figure 3: Configurations on Readout Pulse Generator Tab.

Table 2: Settings of QA Channel 1 on Readout Pulse Generator Tab.
Parameter	Setting	Description
QA Channel Selection	1	Select QA Channel 1.
Sub-Tab Display	Sequence	Select Sequence sub-tab and paste the sequence program below. The Waveform Viewer sub-tab displays waveforms saved in Waveform Memory slots and Integration Weight units.
Compile	Click "To Device"	Compile the sequence program by clicking "To Device".
Digital Triggers	Digital Trigger 1	Select Digital Trigger 1.
Digital Trigger 1 Signal	Internal Trigger	Select Internal Trigger as the trigger source of Digital Trigger 1.
Return	Disable	Disable return function.
Run/Stop	Enable	Run the sequence.

Below is the sequence program for the measurement. In the inner loop, the waitDigTrigger(1) command waits for a digital trigger to continue the sequence, the first playZero command sets the waiting time after receiving a trigger before running the startQA command, the startQA(QA_GEN_0|QA_GEN_1, QA_INT_0|QA_INT_1, true) command sends a trigger to generate output waveform and start integration. The measurement is repeated 100 times by the outer loop.

// configure frequency sweep parameters (starting frequency and frequency increment) of oscillator 0 (1)
configFreqSweep(0, 45000000.0, 1e6);
configFreqSweep(1, 355000000.0, 1e6);
// set oscillator frequency of oscillator 0 (1) to the frequency at index of 0
setSweepStep(0, 0);
setSweepStep(1, 0);

// repeat sequence 10000 times
repeat (100) {
    repeat (100) {
        // wait for a trigger over ZSync. Assume the trigger period is longer than the cycle time
        // waitZSyncTrigger();

        // alternatively wait for a trigger from digital trigger 1
        waitDigTrigger(1);

        // wait for 4096 Samples between the trigger and the first readout pulse
        // Note: this playZero command does not yet block the sequencer
        playZero(4096);

        // define how many samples to wait between the two upcoming startQA commands
        // Note: this command blocks the sequencer until the previous playZero command is finished
        playZero(32);

        // generate readout pulse which is sum of modulated signal 0 and 1
        // integrate demodulated signal 0 and 1 with integration weight 0 and 1, respectively
        startQA(QA_GEN_0|QA_GEN_1, QA_INT_0|QA_INT_1);
    }
}

The digital trigger set on the Trigger sub-tab is the Internal Trigger. The configuration of the Internal Trigger is shown in Figure 4 and Table 3.

Figure 4: Configurations of Internal Trigger on DIO Tab.

Table 3: Settings of Internal Trigger on DIO Setup Tab, see details on DIO Tab
Parameter	Setting	Description
Repetitions	10000	Set number of repetitions.
Holdoff (s)	100u	Set holdoff time to 100 \(\mu\)s.
Synchronization	Disable	Disable Synchronization.
Run/Stop	Disable	Disable the internal trigger.

Configure signal generation and data acquisition

Signal generation and data acquisition are defined on QA Setup Tab and QA Result logger Tab.

Figure 5: Configurations on QA Setup Tab.

The readout waveform is generated by summing up of modulated signal 0 and 1, where the modulated signal 0 (1) is an envelope waveform saved in Waveform Memory slot 0 (1) modulated by the numerical oscillator 0 (1). The length of envelope waveform 0 (1) is doubled by holding the 4th sample of the envelope with 4096 Samples for length of 4096 Samples long.

The input signal is demodulated by oscillator 0 and 1, and then integrated with integration weights 0 and 1, respectively. The integration weight length and integration length is doubled by configuring the downsampling factor to 2, so the integration weight is extended by inserting the same sample after each original weight sample, i.e. the original weight data is \(a1, a2...a4096\), the extended weight with the downsampling factor of 2 is \(a1, a1, a2, a2...a4096, a4096\).

Note

The power consumption of the instrument increases when the "Modulation" is enabled. Please ensure a proper airflow and ambient temperature around the instrument when the modulation is enabled, and disable it if no longer required.

We use Readout mode for multiplex qubit readout (Table 4) and generate both readout envelope waveforms and integration weights parametrically (Table 5 and Table 6). To achieve high readout fidelity optimal weights should be measured and uploaded, see how to measure optimal weights in Integration Weights Measurement. Thresholds need to be uploaded if qubit state discrimination is required.

Table 4: Application Settings of QA Channel 1 on QA Setup Tab.
Parameter	Setting	Description
QA Channel Selection	1	Select QA Channel 1.
Application Mode	Readout	Use Readout mode for multiplexed qubit readout. In Readout mode, the output waveform is generated by summing up all readout waveforms in the Waveform Memory slots, thus the instrument is able to readout up to 16 qubits per channel in parallel. In spectroscopy mode, the readout waveform is generated by a digital oscillator. Since there is only 1 digital oscillator per channel, only single qubit readout is possible in Spectroscopy mode.
Integration Delay (s)	224 n	Set the delay time after receiving a trigger before starting integration. This setting ensures that only the expected input signal is integrated. The internal delay from signal generation to integration is about 224 ns. Therefore, an integration delay > 224 ns is necessary if the propagation delay from front panel signal output port to signal input port is not negligible.
Modulation Enable	Enable	Enable modulation so that the oscillator \(i\) is used to modulate the envelope waveform saved in the Waveform Memory slot \(i\)
Frequency of Oscillator 1 (Hz)	45 MHz	Set frequency of oscillator 0 to 45 MHz. This step is not needed if the oscillator is controlled by the Generator.
Frequency of Oscillator 2 (Hz)	355 MHz	Set frequency of oscillator 1 to 355 MHz. This step is not needed if the oscillator is controlled by the Generator.
Gain of Oscillator 1	0.5	Set gain of oscillator 0 to 0.5.
Gain of Oscillator 2	0.5	Set gain of oscillator 1 to 0.5.

Table 5: Readout Pulse Generation Settings of QA Channel 1 on QA Setup Tab.
Parameter	Setting	Description
QA Channel Selection	1	Select QA Channel 1.
Clear Waveform	Click "Clear"	Clear all waveforms saved in Waveform Memory. Clear all waveforms before uploading new ones to avoid incorrect waveform generation or output overflow.
Waveform Memory \(i\) Set Mode	Parametric	Generate waveform parametrically saved in Waveform Memory slot \(i\) (\(i\) is from 1 to 2). The parametrically generated waveform is \(Ae^{i (2 \pi f t + \frac{\pi}{180}\phi)}\), where \(A\) is the dimensionless amplitude factor of the waveform, \(f\) is the frequency in units of Hz, \(\phi\) is the phase in units of degree.
Waveform Memory \(i\) Amplitude	0.5	Set amplitude factor \(A\) of the parametrically generated waveform saved in Waveform Memory slot \(i\) (\(i\) is from 1 to 2) to 0.1. This setting ensures the amplitude factor of sum of all waveforms is \(\le\) 1.
Waveform Memory \(i\) Frequency (Hz)	0	Set frequency \(f\) of the parametrically generated waveform saved in Waveform Memory slot \(i\) (\(i\) is from 1 to 2) to 0 Hz. The offset frequency is determined by the oscillator frequency.
Waveform Memory \(i\) Phase (Deg)	0	Set phase \(\phi\) of the parametrically generated waveform saved in Waveform Memory slot \(i\) (\(i\) is from 1 to 2) to 0 degree.
Waveform Memory \(i\) Window Length	4096	Set length of the parametrically generated waveform saved in Waveform Memory slot \(i\) (\(i\) is from 1 to 2) in number of samples.
Waveform Memory \(i\) Set To Device	click "Set To Device"	Upload the parametrically generated waveform to Waveform Memory slot \(i\) (\(i\) is from 1 to 2).
Hold Enable in Waveform Memory \(i\)	Enable	Enable waveform hold function in Waveform Memory slot \(i\) (\(i\) is from 1 to 2).
Hold Start Index in Waveform Memory \(i\)	4	Set the index of the waveform sample in Waveform Memory Slot \(i\) (\(i\) is from 1 to 2) where to hold playback to 4.
Hold Length in Waveform Memory \(i\)	4096	Set duration in number of samples in Waveform Memory Slot \(i\) (\(i\) is from 1 to 2) for which to hold the playback to 4096.

Table 6: Integration Weights Settings of QA Channel 1 on QA Setup Tab.
Parameter	Setting	Description
QA Channel Selection	1	Select QA Channel 1.
Integration Length	4096	Set the integration length in number of samples.
Downsampling Factor	2	Set downsampling factor to 2 to double integration weight length and integration length.
Clear Weights	Click "Clear"	Clear all weights saved in Integration Weight slots. Clear all weights before uploading new ones to avoid incorrect weight generation.
Integration Weights \(i\) Set Mode	Parametric	Generate integration weight parametrically saved in Integration Weights unit \(i\) (\(i\) is from 1 to 2). The parametrically generated integration weight is \(A'e^{-i (2 \pi f' t + \frac{\pi}{180}\phi)'}\), where \(A'\) is the dimensionless amplitude factor of the integration weight, \(f'\) is the frequency in units of Hz, \(\phi'\) is the phase in units of degree.
Integration Weights \(i\) Amplitude	1	Set amplitude factor \('A\) of the parametrically generated integration weight saved in Integration Weights unit \(i\) (\(i\) is from 1 to 2)
Integration Weights \(i\) Frequency (Hz)	0	Set frequency \(f\) of the parametrically generated waveform saved in Integration Weights unit \(i\) (\(i\) is from 1 to 2) to 0 Hz. The offset frequency is determined by the oscillator frequency.
Integration Weights \(i\) Phase (Deg)	0	Set phase \(\phi'\) of the parametrically generated integration weight saved in Integration Weights unit \(i\) (\(i\) is from 1 to 2) to 0 degree.
Integration Weights \(i\) Window Length	4096	Set length of the integration weight saved in Integration Weights unit \(i\) (\(i\) is from 1 to 2) in number of samples.
Integration Weights \(i\) Set To Device	Click "Set To Device"	Upload the parametrically generated integration weight to Integration Weight unit \(i\) (\(i\) is from 1 to 2).

How the measurement results are averaged and displayed is defined on QA Result Logger Tab, see Figure 6 and Table 7.

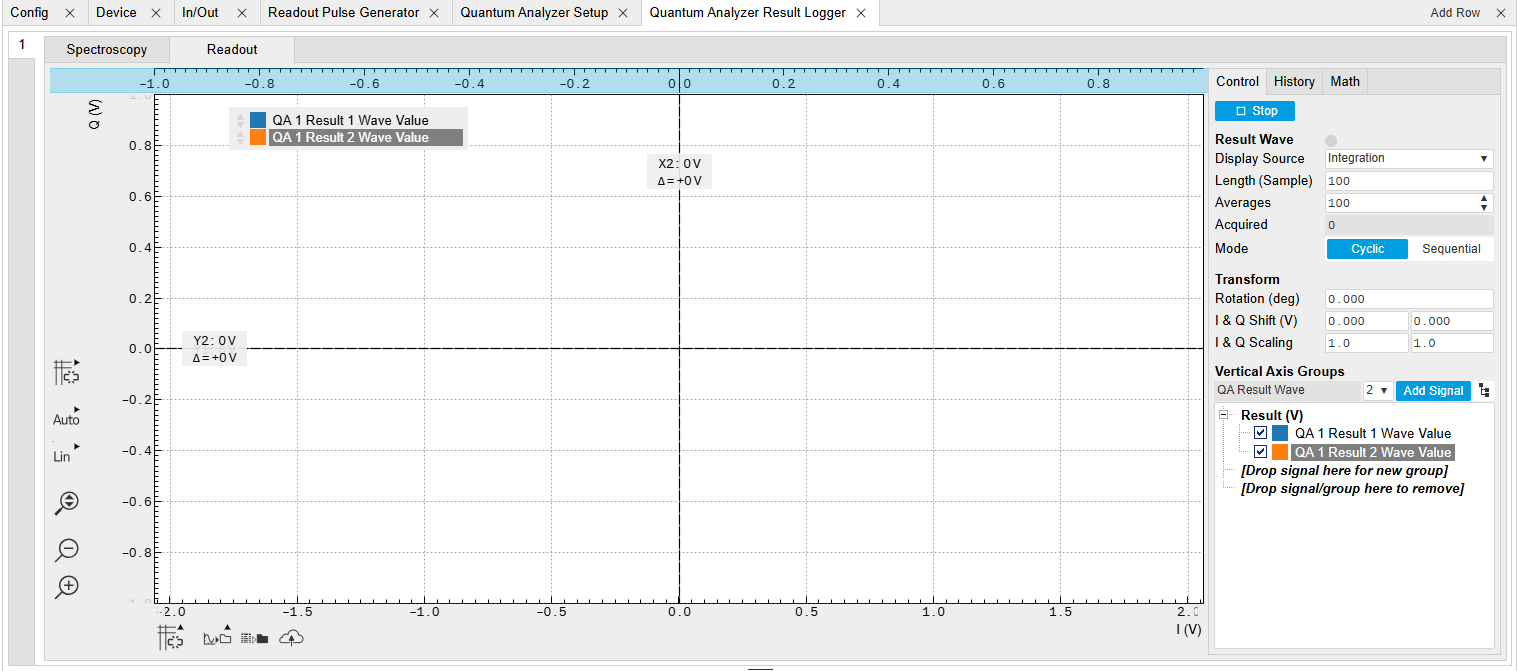

Figure 6: Configurations on QA Result Logger Tab.

Table 7: Settings of QA Channel 1 on QA Result Logger Tab, see details on QA Result Logger Tab
Parameter	Setting	Description
QA Channel Selection	1	Select QA Channel 1.
Sub-Tab	Readout	Select Readout sub-tab to monitor measurement result in Readout Mode.
Display Source	Integration	Display result after integration to monitor results in IQ plane. Choose "Integration (I, Q, Amp, Phase)" If it is desired. Choose "Threshold" if qubit state discrimination is desired.
Result Length (Sample)	100	Set result length in number of samples. The number must match what is set in the sequence program.
Averages	100	Set the number of averages. The number must match what is set in the sequence program.
Average Mode	Cyclic	Set the average mode to cyclic. This setting must match how the loop is configured in the sequence program.
Vertical Axis Groups	Add QA 1 Result \(i\) Wave Value (\(i\) is from 1 to 2)	Add 2 qubit results to the plot.
Run/Stop	Enable	Run the result logger to receive and display measurement results.

Run the measurement

Click "Run/Stop" icon on the System Settings sub-tab of DIO tab to run the measurement.
Monitor the measurement results

The measurement result is displayed on QA Result Tab, as shown in Figure 7. The data format of measurement result is complex data. The spread of the readout results indicates that each component of the input signal has a similar amplitude but different phase delay.

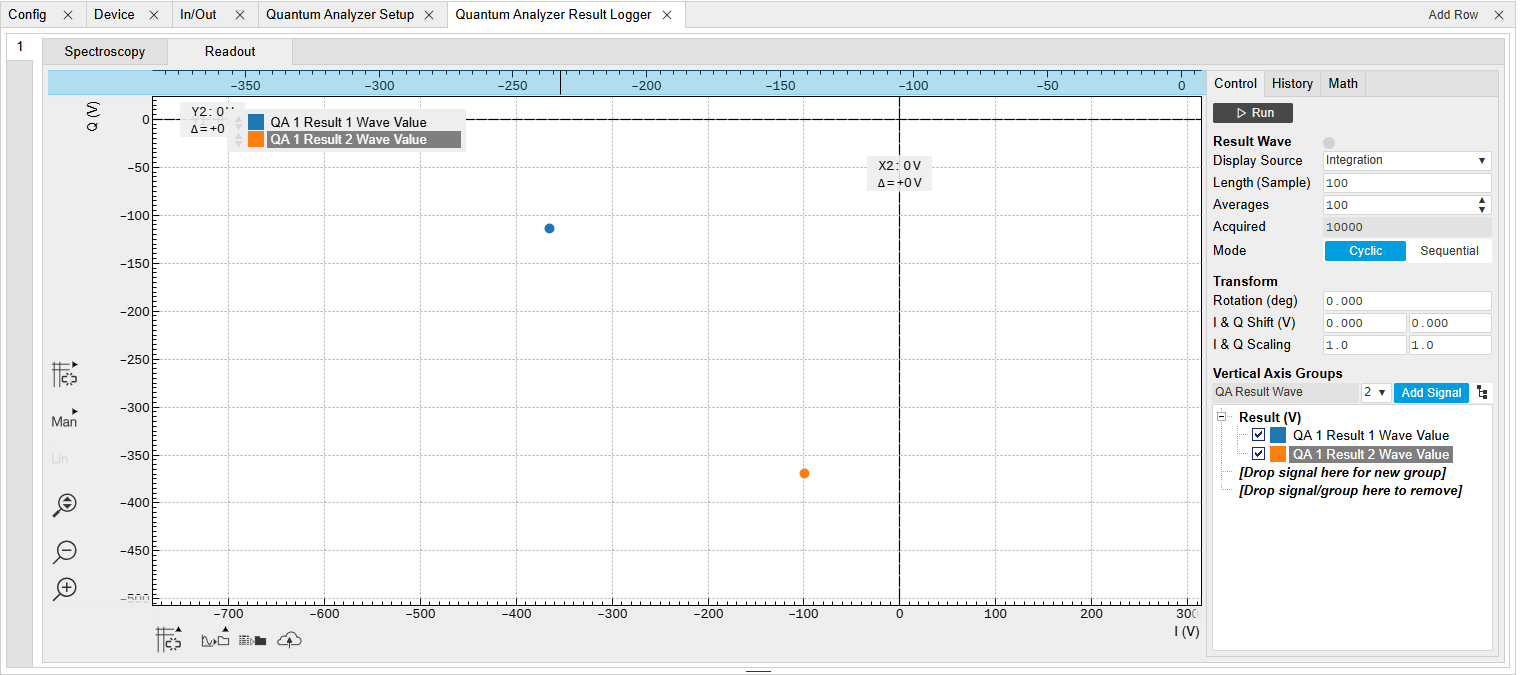

Figure 7: Measurement results on QA Result Logger Tab.

Connect the instrument

Create a toolkit session to the data server and connect the device with the device ID, e.g. 'DEV12001', see Connecting to the Instrument.

from zhinst.toolkit import Session, SHFQAChannelMode, Waveforms
from scipy.signal import gaussian
import numpy as np

DEVICE_ID = 'DEVXXXXX'
SERVER_HOST = 'localhost'

session = Session(SERVER_HOST)              ## connect to data server
device = session.connect_device(DEVICE_ID)  ## connect to device

Generate readout pulses and integration weights

To readout 2 qubits with 4.096 \(\mu\)s readout time in parallel, the readout waveform is generated by summing up of modulated signal 0 and 1, where the modulated signal 0 (1) is an envelope waveform saved in Waveform Memory slot 0 (1) modulated by the numerical oscillator 0 (1). The length of envelope waveform 0 (1) is doubled by holding the 2048th sample of the envelope with 4096 Samples for length of 4096 Samples long.

In this tutorial, the envelope of all readout pulses is flat-top Gaussian with pulse length of 2.048 \(\mu\)s and rise and fall time of 2 ns, all amplitude are equally scaled by a factor of 1 and divided by the number of qubits, all phases are set to 0 and the envelopes are modulated by the oscillators with frequency of 45 MHz and 355 MHz. The zhinst-toolkit class Waveforms is for converting waveform data written in Python to data that is uploaded to the instrument correctly.

The input signal is demodulated by oscillator 0 and 1, and then integrated with integration weights 0 and 1, respectively. The integration weight length and integration length are doubled by configuring the downsampling factor to 2, so the integration weight is extended by inserting the same sample after each original weight sample, i.e. the original weight data is \(a1, a2...a4096\), the extended weight with the downsampling factor of 2 is \(a1, a1, a2, a2...a4096, a4096\).

# generate readout pulses
NUM_QUBITS = 2
RISE_FALL_TIME = 2e-9 # in units of second
SAMPLING_RATE = 2e9 # in units of Hz
PULSE_DURATION = 2048e-9 # in units of second
FREQUENCIES = [45e6, 355e6] # in units of Hz
PHASE = 0
SCALING = 1 / NUM_QUBITS # amplitude scaling factor

CHANNEL_INDEX = 0 # physical Channel 1

rise_fall_len = int(RISE_FALL_TIME * SAMPLING_RATE)
pulse_len = int(PULSE_DURATION * SAMPLING_RATE)
std_dev = rise_fall_len // 10

gauss = gaussian(2 * rise_fall_len, std_dev)
flat_top_gaussian = np.ones(pulse_len)
flat_top_gaussian[0:rise_fall_len] = gauss[0:rise_fall_len]
flat_top_gaussian[-rise_fall_len:] = gauss[-rise_fall_len:]
flat_top_gaussian *= SCALING
time_vec = np.linspace(0, PULSE_DURATION, pulse_len)

readout_pulses = Waveforms()
for i, f in enumerate(FREQUENCIES):
    readout_pulses.assign_waveform(
        slot=i,
        wave1=flat_top_gaussian * np.exp(1j * PHASE)
    )

# generate integration weights
ROTATION_ANGLE = 0
weights =  Waveforms()
for waveform_slot, pulse in readout_pulses.items():
    weights.assign_waveform(
        slot=waveform_slot,
        wave1=np.conj(pulse[0] * np.exp(1j * ROTATION_ANGLE)) / np.abs(pulse[0])
    )

# upload readout pulses and integration weights to waveform memory
device.qachannels[CHANNEL_INDEX].generator.clearwave() # clear all readout waveforms
device.qachannels[CHANNEL_INDEX].generator.write_to_waveform_memory(readout_pulses)

device.qachannels[CHANNEL_INDEX].readout.integration.clearweight() # clear all integration weights
device.qachannels[CHANNEL_INDEX].readout.write_integration_weights(
    weights=weights,
    # compensation for the delay between generator output and input of the integration unit
    integration_delay=224e-9
)

# define parameters to generate longer readout pulse and integrate longer
device.qachannels[CHANNEL_INDEX].modulation.enable(1)
with device.set_transaction():
    for i in range(NUM_QUBITS):
        device.qachannels[CHANNEL_INDEX].oscs[i].gain(0.5)
        device.qachannels[CHANNEL_INDEX].generator.waveforms[i].hold.enable(1) # configure hold parameters after uploading readout waveforms
        device.qachannels[CHANNEL_INDEX].generator.waveforms[i].hold.samples.startindex(2048)
        device.qachannels[CHANNEL_INDEX].generator.waveforms[i].hold.samples.length(4096)
device.qachannels[CHANNEL_INDEX].readout.integration.downsampling.factor(2) # integration weight x2, and integration length x2

The conjugated readout pulses with the amplitude scaling factor of 1 used as integration weights are uploaded to the integration weight memory for simplicity. Check the Tutorial Integration Weights Measurement to see how to measure integration weights to improve readout SNR. The integration delay is set to 224 ns in the loopback configuration.

Note

The power consumption of the instrument increases when the "Modulation" is enabled. Please ensure a proper airflow and ambient temperature around the instrument when the modulation is enabled, and disable it if no longer required.

Configure the Channel

Configure the Channel such that the readout pulses are integrated with different integration weights in parallel, and the measurement is repeated 10000 times.

NUM_READOUTS = 100
NUM_AVERAGES = 100
MODE_AVERAGES = 0 # 0: cyclic; 1: sequential;
INTEGRATION_TIME = PULSE_DURATION # in units of second

with device.set_transaction():
    # configure inputs and outputs
    device.qachannels[CHANNEL_INDEX].configure_channel(
        center_frequency=5e9, # in units of Hz
        input_range=0, # in units of dBm
        output_range=0, # in units of dBm
        mode=SHFQAChannelMode.READOUT, # READOUT or SPECTROSCOPY
    )
    device.qachannels[CHANNEL_INDEX].input.on(1)
    device.qachannels[CHANNEL_INDEX].output.on(1)

    # configure sequencer
    device.qachannels[CHANNEL_INDEX].generator.configure_sequencer_triggering(
        aux_trigger=8, # internal trigger
        play_pulse_delay=0, # 0s delay between startQA trigger and the readout pulse
    )

    seqc_program = f"""

        // configure frequency sweep parameters (starting frequency and frequency increment) of oscillator 0 (1)
        configFreqSweep(0, {FREQUENCIES[0]}, 1e6);
        configFreqSweep(1, {FREQUENCIES[1]}, 1e6);
        // set oscillator frequency of oscillator 0 (1) to the frequency at index of 0
        setSweepStep(0, 0);
        setSweepStep(1, 0);

        // repeat sequence 10000 times
        repeat (100) {{
            repeat (100) {{
                // wait for a trigger over ZSync. Assume the trigger period is longer than the cycle time
                // waitZSyncTrigger();

                // alternatively wait for a trigger from digital trigger 1
                waitDigTrigger(1);

                // wait for 4096 Samples between the trigger and the first readout pulse
                // Note: this playZero command does not yet block the sequencer
                playZero(4096);

                // define how many samples to wait between the two upcoming startQA commands
                // Note: this command blocks the sequencer until the previous playZero command is finished
                playZero(32);

                // generate readout pulse which is sum of modulated signal 0 and 1
                // integrate demodulated signal 0 and 1 with integration weight 0 and 1, respectively
                startQA(QA_GEN_0|QA_GEN_1, QA_INT_0|QA_INT_1);
            }}
        }}
    """
    device.qachannels[CHANNEL_INDEX].generator.load_sequencer_program(seqc_program)

    # configure internal trigger
    device.system.internaltrigger.repetitions(int(NUM_READOUTS * NUM_AVERAGES))
    device.system.internaltrigger.holdoff(100e-6)

    # configure QA setup and QA result logger
    device.qachannels[CHANNEL_INDEX].readout.integration.length(int(INTEGRATION_TIME * SAMPLING_RATE))
    device.qachannels[CHANNEL_INDEX].readout.configure_result_logger(
        result_length=NUM_READOUTS,
        result_source='result_of_integration', # “result_of_integration” or “result_of_discrimination”.
        num_averages=NUM_AVERAGES,
        averaging_mode=MODE_AVERAGES,
    )

The input range and output range of the Channel 1 is set to 0 dBm, and the center frequency is 5 GHz. There are 2 application modes see Quantum Analyzer Setup Tab. For multiplexed readout, Readout mode is selected in order to use customized integration weights for different qubits. All settings are configured using qachannels[n].configure_channel function. The function configure_sequencer_triggering and load_sequencer_program are used to configure the sequence trigger and upload the sequence program, respectively.

The measurement sequence is defined by the SeqC program such that it sets oscillator frequencies, and sends out the readout pulse and integrates the signal with the integration delay of 224 ns after receiving a trigger (Internal Trigger). The measurement is repeated 10000 times. These parameters are configured by the function readout.configure_result_logger.

The result after integration and averaging is saved to the QA Result Logger. This configuration can be used to calibrate control pulses and characterize the qubits, measure thresholds without averaging for state discrimination or readout fidelity if the result source is set to 'result_of_discrimination' and the thresholds are updated using device.qachannels[CHANNEL_INDEX].readout.discriminators[n].threshold() (n is the qubit index).

Run the measurement, download and plot the result

Before starting the measurement, the QA Result Logger is enabled to be ready to get the result, and the Sequencer is enabled by enable_sequencer to be ready to run the sequence once an internal trigger is received. The measurement result is returned by readout.read function, and it is also displayed in QA Result Logger Tab see Figure 8.
```
device.qachannels[CHANNEL_INDEX].readout.run() # enable QA Result Logger
device.qachannels[CHANNEL_INDEX].generator.enable_sequencer(single=True)
device.system.internaltrigger.enable(1)
readout_results = device.qachannels[CHANNEL_INDEX].readout.read()
```
Figure 8: Multiplexed readout of 2 qubits in loopback configuration.

Use the following code snippet to plot the readout result as seen in Figure 9
```
import matplotlib.pyplot as plt

plt.figure()
for i in range(NUM_QUBITS):
    plt.plot(readout_results[i].real, readout_results[i].imag, '.', label = f'Q{i}')
plt.legend()
plt.grid("both")
plt.axis("equal")
plt.xlabel("I (Vrms)")
plt.ylabel("Q (Vrms)")
plt.tight_layout()
```
Figure 9: Multiplexed readout of 2 qubits in loopback configuration.
